Signal Model

The BS-UE channel is modeled as:

$$ {h}_{\mathrm{UE}}\left( t,\tau \right) =\sum_{l=1}^L{\alpha _l\delta \left( \tau -\tau _l-\tau _d \right) e^{j2\pi \left( f_{D,l}+\Delta f_c \right) t}} $$

where \(L\) is the number of multi-path components, \(\tau_d\) is the timing offset, and \(\Delta f_c\) is the carrier-frequency offset.

The monostatic sensing channel is:

$$ {h}_{\mathrm{BS}}\left( t,\tau \right) =\sum_{p=1}^P{\beta _{p}\delta \left( \tau -\tau _{s,p} \right) e^{j2\pi f_{D,s,p} t}} $$

Continuous Wave vs. Packet Radio

OpenISAC adopts a continuous-wave transmission scheme to enable more accurate and flexible Doppler sensing, avoiding the jitter and irregular intervals of packet-based systems (like Wi-Fi).

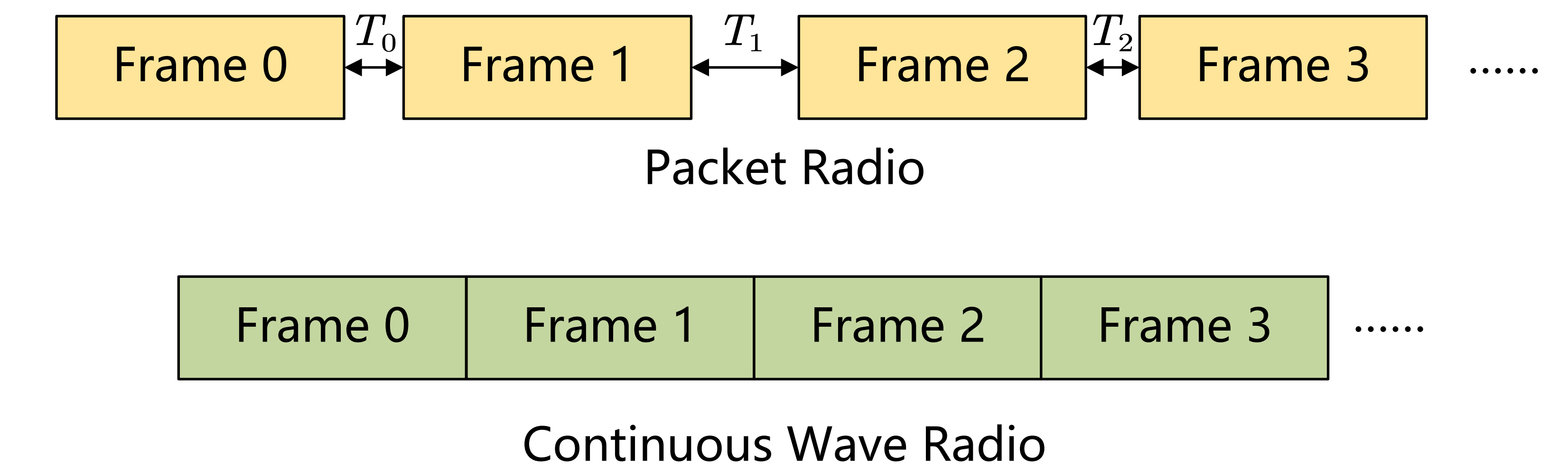

Packet Radio vs Continuous Wave

Fig. 4. Comparison between packet radio and continuous wave radio.

Monostatic Sensing

Monostatic Sensing Flow Graph

Fig. 5. Signal processing procedure for monostatic sensing.

The processing pipeline includes:

  1. OFDM Demodulation & Element-wise Division: Removes the influence of transmitted data symbols to obtain the TF channel matrices. $$ \left( \boldsymbol{F}_{\mathrm{BS},\gamma} \right) _{n,m}=\frac{\left( \boldsymbol{B}_{\mathrm{BS},\gamma} \right) _{n,m}}{b_{n,m,\gamma}} $$
  2. Clutter Suppression: Applies an improved Moving Target Indication (MTI) procedure (IIR High-pass filter) to suppress static clutter. $$ ( \tilde{\boldsymbol{F}}_{\mathrm{BS}} )_{n,m} = \frac{1}{a_0} \left( \sum_{i=0}^{I} b_i ( \grave{\boldsymbol{F}}_{\mathrm{BS}} )_{n,m-i} - \sum_{j=1}^{J} a_j ( \tilde{\boldsymbol{F}}_{\mathrm{BS}} )_{n,m-j} \right) $$
  3. Delay-Doppler Processing: Computes the periodogram to estimate target range and velocity. $$ \left(\mathrm{Per}_{\gamma}\right)_{k_{\tau},k_{f}} =\frac{1}{N M_s} \left| \sum_{m=0}^{M_s-1}\sum_{n=0}^{N-1} (\tilde{\boldsymbol{F}}_{\mathrm{BS},\gamma})_{n,m}\, w[n,m]\, e^{j2\pi \frac{n k_{\tau}}{N_{\mathrm{Per}}}} e^{-j2\pi \frac{m k_{f}}{M_{\mathrm{Per}}}} \right|^2 $$
  4. Micro-Doppler Processing:

    After clutter suppression, micro-Doppler analysis operates directly on the slow-time stream per range bin. First, form the delay-time matrix via an IFFT:

    $$ \left(\boldsymbol{R}_{\mathrm{BS}}\right)_{k_{\tau},m} =\frac{1}{N}\sum_{n=0}^{N-1} \left(\tilde{\boldsymbol{F}}_{\mathrm{BS}}\right)_{n,m}\,e^{\,j2\pi \frac{n k_{\tau}}{N}} $$

    Then, select a working range bin \(k_{\tau}^\star\) and compute the Short-Time Fourier Transform (STFT):

    $$ \left(\boldsymbol{G}\right)_{m,k_f} =\sum_{\ell=0}^{M_w-1} r_{\mathrm{BS}}\!\left[mM_H+\ell\right]\; w_\mathrm{md}[\ell]\; e^{-j2\pi \frac{k_f\,\ell}{M_{\mathrm{md}}}} $$

    The spectrogram is then calculated as:

    $$ \left( \mathrm{SPT} \right) _{m,k_f}=\frac{1}{M_w}\left| \left( \boldsymbol{G} \right) _{m,k_f} \right|^2 $$

UE Communication Reception

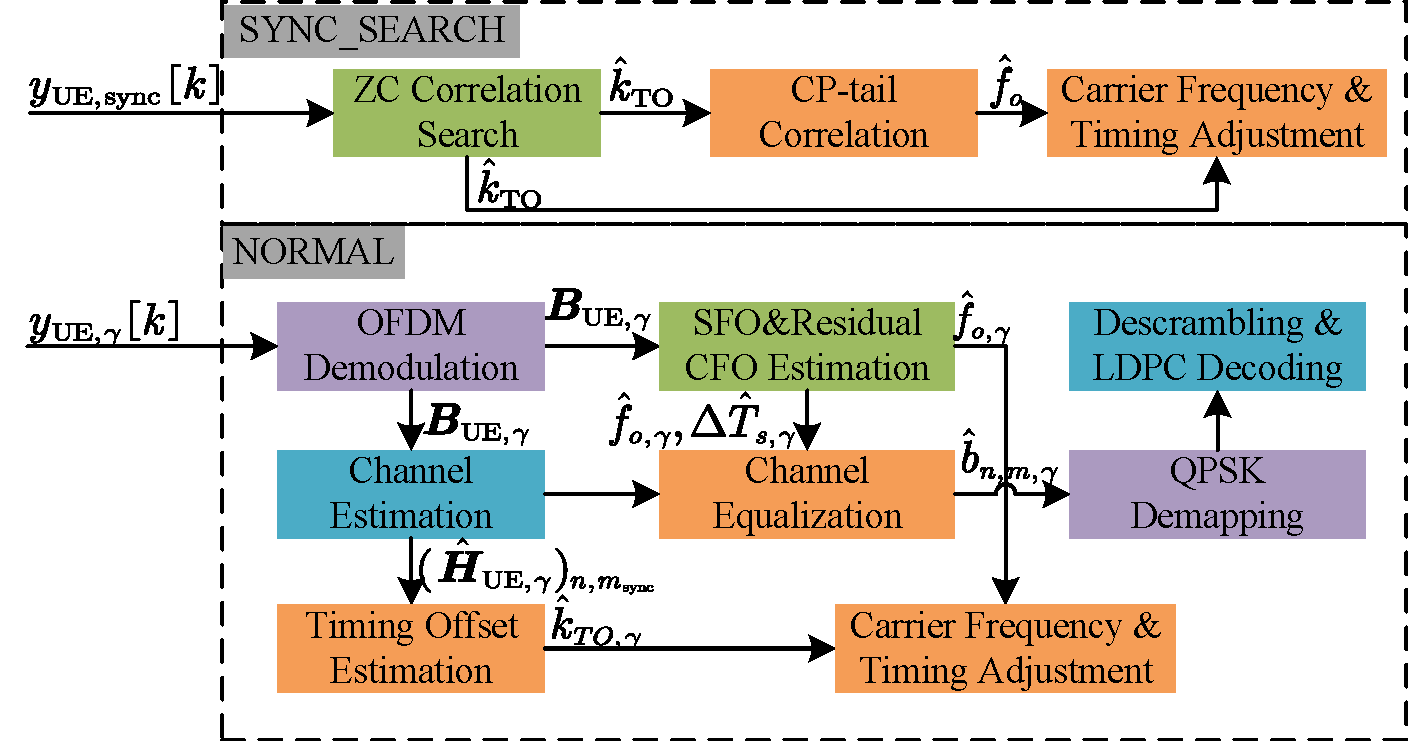

UE Processing Flow Graph

Fig. 6. Block diagram of UE communication reception.

The UE operates in two states:

SYNC_SEARCH State

The UE operates in a block-by-block fashion. In each iteration, it fetches a block of samples and performs the following:

  1. Frame Detection & Timing Estimation: Performs a sliding correlation with the known Zadoff–Chu (ZC) synchronization symbol \(s_{\mathrm{ZC}}[k]\): $$ r[k]=\sum_{i=0}^{N_s-1}{y_{\mathrm{UE},\mathrm{sync}}\left[ k+i \right] s_{\mathrm{ZC}}^{*}\left[ i \right]} $$ A peak in the normalized correlation energy \(r_N[k]\) indicates the frame boundary and initial timing offset \(\hat{k}_{\mathrm{TO}}\): $$ r_N[k]=\frac{|r[k]|^2}{\sum_{n=0}^{N_{\mathrm{corr}}}|r[k]|^2} $$
  2. Coarse Frequency Offset Estimation: Uses CP-tail correlations across multiple symbols to estimate the fractional frequency offset \(\hat{f}_o\): $$ \hat{f}_o=\frac{\mathrm{arg}\!\bigl( r_{\mathrm{CP}} \bigr)}{2\pi T} $$
  3. Correction: The estimated offsets are corrected via digital frequency retuning or OCXO adjustment, and sample alignment (padding/discarding).

NORMAL State

Once synchronized, the UE transitions to the NORMAL state to process frames:

  1. OFDM Demodulation: Removes CPs and performs FFT to obtain frequency-domain symbols: $$ \left( \boldsymbol{B}_{\mathrm{UE},\gamma} \right)_{n,m} = b_{n,m,\gamma} \left( \boldsymbol{H}_{\mathrm{UE},\gamma} \right)_{n,m} + \left( \boldsymbol{Z}_{\mathrm{UE},\gamma} \right)_{n,m} $$
  2. Channel Estimation: Uses the ZC symbol to estimate the channel response: $$ (\hat{\boldsymbol{H}}_{\mathrm{UE},\gamma})_{n,m_{\mathrm{sync}}}=\frac{\left( \boldsymbol{B}_{\mathrm{UE},\gamma} \right) _{n,m_{\mathrm{sync}}}}{z_n} $$ The full-frame channel estimates are obtained by propagating the estimate at the synchronization symbol \(m_{\mathrm{sync}}\): $$ (\hat{\boldsymbol{H}}_{\mathrm{UE},\gamma})_{n,m}=(\hat{\boldsymbol{H}}_{\mathrm{UE},\gamma})_{n,m_{\mathrm{sync}}}\exp \bigl( j2\pi ( m-m_{\mathrm{sync}} )( \hat{f}_{o,\gamma}T_O-n\Delta fN_s\Delta \hat{T}_{s,\gamma} ) \bigr) $$
  3. CFO/SFO Tracking: Pilots are used to track residual carrier frequency offset (CFO) and sampling frequency offset (SFO) via Weighted Linear Regression (WLS) on pilot phase errors: $$ \hat{\boldsymbol{\theta}}_\gamma = \big( \boldsymbol{A}_\gamma^{{T}} \boldsymbol{W}_\gamma \boldsymbol{A}_\gamma \big)^{-1} \boldsymbol{A}_\gamma^{{T}} \boldsymbol{W}_\gamma \boldsymbol{\varphi}_{{UE},\gamma} $$
  4. Equalization & Decoding: Performs channel equalization via one-tap frequency-domain equalization: $$ \hat{b}_{n,m,\gamma}=\frac{\left( \boldsymbol{B}_{\mathrm{UE},\gamma} \right) _{n,m}}{(\hat{\boldsymbol{H}}_{\mathrm{UE},\gamma})_{n,m}} $$ Then, LLRs are computed, descrambled, and LDPC-decoded to recover the payload.

UE Bistatic Sensing

Signal processing for bistatic sensing involves reconstructing unknown modulation symbols and performing Over-the-Air (OTA) synchronization.

Modulation Symbol Reconstruction

The reconstructed QPSK data symbol is obtained by making hard decisions on the equalized symbols \(\hat{b}_{n,m,\gamma}\):

$$ \tilde{b}_{n,m,\gamma} = \frac{1}{\sqrt{2}}\big( \operatorname{sgn}(\mathrm{Re}\{\hat{b}_{n,m,\gamma}\}) + j\operatorname{sgn}(\mathrm{Im}\{\hat{b}_{n,m,\gamma}\}) \big) $$

OTA Synchronization

Bistatic sensing requires robust real-time synchronization without a wired link. OpenISAC implements a low-complexity over-the-air (OTA) synchronization scheme:

  1. Fractional Timing Estimation: Refines the timing offset using Quinn's algorithm to obtain a fractional estimate \(\hat{\delta}_{\tau}\) from the delay-domain peak. The overall timing offset is estimated as: $$ \hat{\tau}_{o,\gamma} = \frac{\hat{\delta}_{\tau}+k_{\max ,\gamma}}{f_s} $$
  2. SIO Tracking: Estimates the Sampling Interval Offset (SIO) \(\epsilon_{\mathrm{SIO},w}\) by performing linear regression on the timing corrections over a window of \(\Gamma_W\) frames: $$ \tilde{k}_{\tau,\gamma_w+\ell} \approx \epsilon_{\mathrm{SIO},w}\,\ell + \hat{k}_{\tau,\gamma_w} $$
  3. Recursive Update: Maintains a smooth estimate of the cumulative sensing timing offset \(\hat{k}^{\mathrm{sens}}_{\tau,\gamma}\) to avoid jitter: $$ \hat{k}^{\mathrm{sens}}_{\tau,\gamma} = \hat{k}^{\mathrm{sens}}_{\tau,\gamma-1} + \hat{\epsilon}_{\mathrm{SIO},w-1} - \hat{k}_{\mathrm{TO},\gamma-1} + \mu_\gamma e_\gamma $$ where \(\mu_\gamma e_\gamma\) is a feedback correction term based on the tracking error.
  4. Channel Compensation: The estimated timing offset and SIO are applied to the bistatic channel matrix to compensate for synchronization errors: $$ \left( \tilde{\boldsymbol{F}}_{\mathrm{UE},\gamma} \right) _{n,m} = \left( \boldsymbol{F}_{\mathrm{UE},\gamma} \right) _{n,m} e^{j2\pi n\Delta f\left( \hat{k}_{\tau ,\gamma}^{\mathrm{sens}}+mN_s\Delta \hat{T}_{as,w-1} \right)} $$
